The Zinger Tool
The Zinger Tool

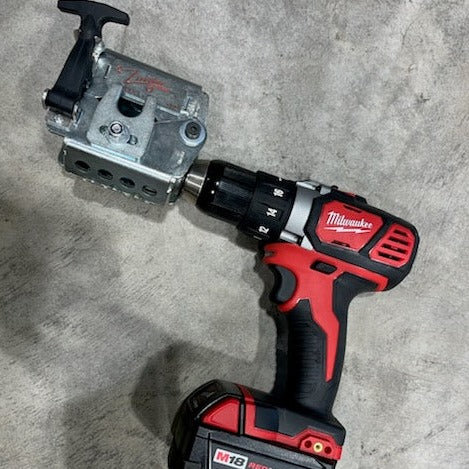

The Zinger is designed to be used with a cordless or electric drill to assist in pushing or pulling fiber optic cable, a fiberglass rodder, or other types of stiff wire or cable (product) through a conduit. It can also pull a string or mule tape through a duct or conduit.
Using the Zinger greatly speeds up the process of pushing or pulling fiber, flat-drop fiber or other products up to 1/2” (12 mm) diameter. It also relieves the physical fatigue of working with hundreds of feet of product throughout the day.
The Zinger was designed for product runs of up to 300 feet, but in some cases, up to 1,000 feet of product has been successfully pushed into a conduit.
Please keep in mind, in order for the Zinger to work effectively, the product must be
able to be pulled or pushed easily by hand. If the product cannot be pushed or pulled by hand, do not use the Zinger.
Share
Additional Information
Operation Instructions
There are two methods of inserting the product into the Zinger.
- The first method is releasing the latch and opening the unit to insert the product. This method is used whenever the end of the product is not accessible.
- The second method is to simply feed the end of the product into the unit as the rollers are rotating.
Required Equipment
Drill - Battery or Electric with 1/2" Chuck and Adjustable Clutch
Safety
It is the responsibility of the user to understand and properly use this unit. Be aware of the inherent hazards in the use of this unit. Read, understand, and follow all Cautions, Notices, and Safety Instructions in this manual.
Accidents can often be avoided by being alert and recognizing potentially hazardous situations. Anyone operating this unit must have the necessary training to operate it properly and safely. The safety information in this manual serves as a basic guide in an attempt to prevent injury.
PT Con LLC cannot anticipate every possible circumstance that might involve a potential hazard. The identification of hazardous situations in this manual is, therefore, not all-inclusive. If procedures or operating techniques that are not specifically mentioned are used, you must satisfy yourself that they are safe for you and for bystanders. Make sure the Zinger, the product, the conduit, or any other related items in using the Zinger will not be damaged or made unsafe by any operating method you choose.
DO NOT proceed if any doubt arises about the correct or safe method of performing anything found in this or other related equipment manuals. If in doubt, seek out expert assistance from a qualified person before continuing.
